Bag-In-Box Packaging Filling Equipment: Features, Benefits, and Applications

How Bag-In-Box Filling Equipment Works

Bag-in-box filling equipment is designed to automate the filling process, ensuring precision, hygiene, and efficiency. The filling process generally involves the following steps:

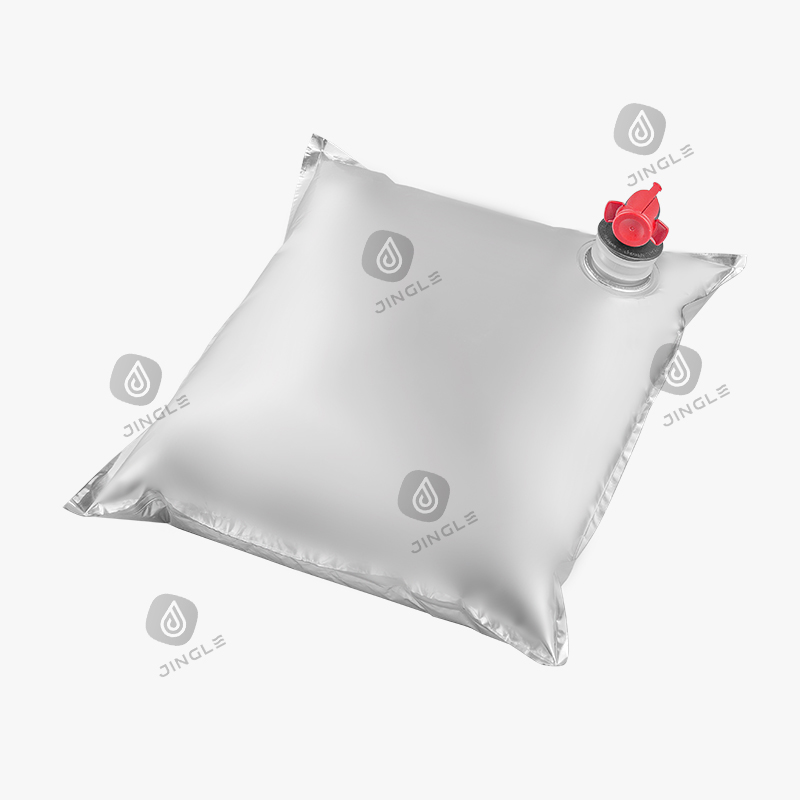

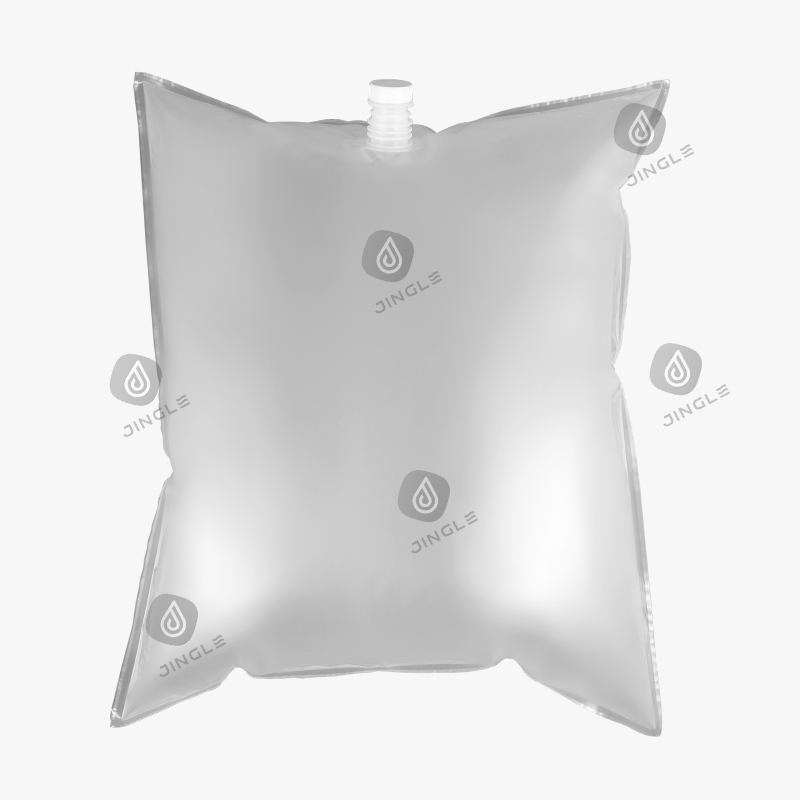

Bag Placement: The bag is placed inside the outer box or carton. The bag typically features an inlet valve or spout through which the product will be filled.

Filling Process: The equipment is equipped with nozzles or filling heads that are connected to a product supply line. These nozzles insert into the bag's inlet and begin filling the bag with the product. Some filling machines have a vacuum or pressure system to aid the filling process, ensuring that the bag is filled evenly and without air pockets.

Sealing: Once the desired volume of product is dispensed into the bag, the equipment automatically seals the bag to prevent any leakage. Some systems use heat-sealing methods, while others may use clamps or mechanical seals depending on the type of bag used.

Box Sealing: After the bag is sealed, the outer box or carton is closed and sealed, ensuring that the product is secure and ready for distribution.

Types of Bag-In-Box Filling Equipment

There are various types of Bag-In-Box filling machines available, each designed to meet specific requirements. Some of the most common include:

Volumetric Filling Machines: These machines fill the bags based on a preset volume of liquid. They are ideal for products with consistent viscosity, like juices or oils. Volumetric filling systems ensure accuracy in filling, reducing wastage.

Weighing Filling Machines: This type of machine uses a weighing scale to measure the weight of the product being filled. It is ideal for products where weight is more important than volume, such as granular or powder substances.

Piston Filling Machines: Piston-based filling systems are commonly used for thicker products, such as sauces, pastes, and creams. These machines provide a high level of precision in dispensing viscous products, ensuring minimal wastage.

Flow Meter Filling Machines: Flow meters are used to measure the flow of liquids into the bag, offering a precise and efficient method of filling. These systems are especially popular for high-speed production lines.

Hybrid Filling Machines: These machines combine features from different types of filling technologies to offer flexibility in terms of filling various products. They are useful for companies that fill a wide range of liquids, powders, or semi-solids.

Advantages of Bag-In-Box Packaging

Cost-Effective: Bag-in-box packaging is often more affordable than other packaging methods, especially when filling large volumes. The material costs for the bags and boxes are generally lower than glass bottles or rigid containers, making it a budget-friendly choice for businesses.

Space Efficient: Bag-in-box packaging is lightweight and compact, making it more space-efficient for storage and transportation. The flexible bag conforms to the shape of the box, allowing for optimal space usage.

Sustainability: Many manufacturers use recyclable materials for the bags and boxes, making BIB packaging an eco-friendly option. In addition, the lightweight nature of the packaging reduces the carbon footprint during transportation.

Ease of Use: The BIB packaging system is incredibly user-friendly. The spouts or taps make dispensing the product easy and mess-free. This feature is especially useful for consumer-facing applications like wine and juice.

Long Shelf Life: The sealed bag within the box offers excellent protection against contamination, light, and air, thereby extending the shelf life of the product. This is particularly important for products sensitive to oxidation, like wines and juices.

Hygiene and Safety: The closed system of filling helps reduce the risk of contamination. The automated filling process ensures that there is minimal human contact, making it ideal for food and beverage packaging.

Applications of Bag-In-Box Filling Equipment

Bag-in-box packaging filling equipment is used across various industries, including:

Food and Beverage: BIB systems are widely used in the wine, juice, dairy, and syrup industries. The flexibility of the system allows it to accommodate a wide range of liquid and semi-solid products.

Chemicals and Cleaning Products: The packaging is also suitable for industrial chemicals, detergents, and cleaning products, providing secure and efficient storage and transport.

Cosmetics and Pharmaceuticals: Bag-in-box packaging is used for lotions, creams, and liquid medications. It ensures that these sensitive products are kept safe and secure during transportation and use.

Agriculture and Pesticides: Large-scale agricultural products, such as pesticides and fertilizers, are also often packaged in Bag-In-Box systems.

Key Considerations When Choosing Bag-In-Box Filling Equipment

When selecting Bag-In-Box filling equipment, several factors should be taken into account:

Product Type: The viscosity, flow characteristics, and sensitivity of the product will determine the type of filling machine required. Some products, such as thick creams or pastes, may need piston or gravity filling systems.

Filling Speed: The production speed of the machine should match the operational requirements of the facility. Some businesses need high-speed equipment for large-scale production, while others may require slower systems for smaller batches.

Automation Level: Fully automated systems reduce labor costs and improve consistency, but they may come at a higher initial investment. Semi-automated or manual systems can be more affordable but require more hands-on involvement.

Maintenance and Support: Look for manufacturers that offer reliable customer support and maintenance services to ensure smooth operation of the equipment over time.
